Murata SCR410T-K03 gyroscope

Technology Cover
Post-datum: 2022-11-21, Murata

Murata SCR410T-K03 gyroscope adopts high-performance angular rate sensor module based on Murata capacitive 3D-MEMS technology. Signal processing is implemented in a mixed signal ASIC, which provides angular rate and acceleration output through flexible SPI digital interface. The SCR410T-K03 series has a ± 300 °/s X - or X/z axis angular rate measurement range and a power supply voltage of 3V to 3.6V. These gyroscopes encapsulate the sensor elements and ASIC into the over molded SOIC-16W plastic housing, which can operate reliably during the product life cycle. This robust SMD package is also suitable for lead-free soldering processes. The shell size of sc410t - k03 series is 10.4mm ×  7.65mm  ×  2.3mm (length × wide × High), compatible with RoHS and ELV instructions, operating temperature range is - 40 ℃~+110 ℃.

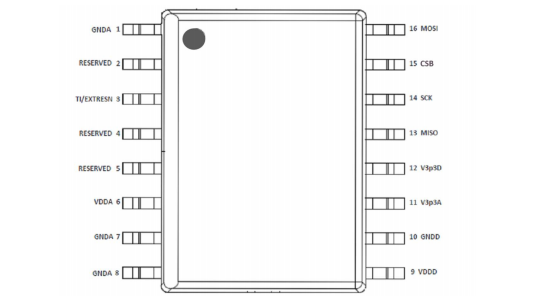

Pin Description





Murata SCR410T-K03 gyroscope is an ideal choice for applications requiring high stability in harsh environments. Industrial applications include robot control systems, machine control systems, platform stability and control, and motion analysis and control. These gyroscopes are part of Murata's SCC400T series.

Directions
