Operational amplifier, single power 3.0 V to 44 V, low power

Technology Cover
Post-datum: 2022-12-23, ON Semiconductor

The MC33171/72/74, NCV33172/74 series of monolithic operational amplifiers are manufactured with high quality bipolar with an innovative design philosophy. Specified in industrial/automotive temperature ranges. A complete line of single, double and quad operational amplifiers is available in plastic and surface mount packages.

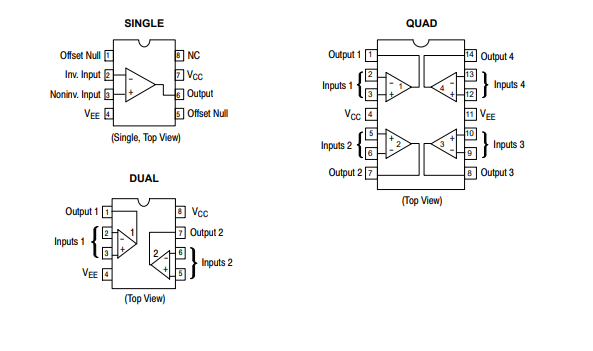

Pin definition



These devices operate at 180 A per amplifier, providing a gain bandwidth product of 1.8 MHz and a conversion rate of 2.1 V/s without the use of JFET device technology. Although the series can operate from a split power supply, it is particularly suitable for single power supply operation because the common-mode input voltage includes ground potential (VEE). Using the Darlington input stage, these devices exhibit high input resistance, low input bias voltage, and high gain.

Full NPN output stages feature dead-free cross distortion and large output voltage fluctuations, with high capacitive drive capability, good phase and gain margin, low open-loop high-frequency output impedance and symmetrical source /sink AC frequency response.

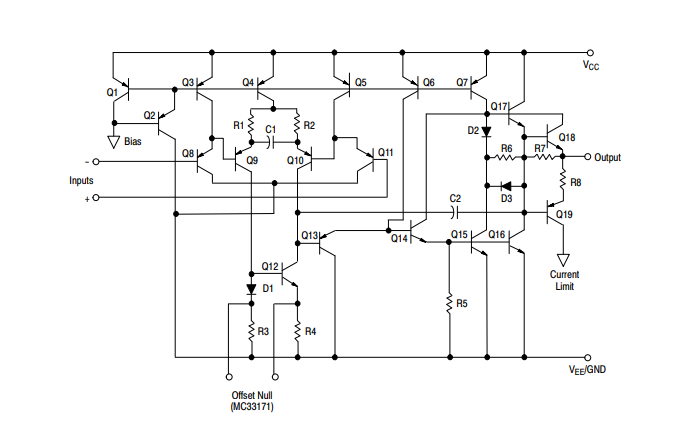

Schematic diagram
